USB TO SATA / IDE CABLE FOR 2.5" / 3.5" / 5.25" DRIVE WITH POWER ADAPTER (Supports USB 2.0 specifications for faster speeds, but is also backwards compatible to USB 1.1).

Specifications & Features

USB TO IDE CABLE FOR 2.5"/3.5"/5.25" DRIVE WITH POWER ADAPTER

The USB to IDE / SATA Drive Adapter implements a bridge between one USB port and one ATA or ATAPI based mass storage device port. The USB to IDE / SATA Drive Adapter turns any IDE or SATA drive into a convenient external drive. Easily transfer files from computer or notebook, back up files, or store large file archives on hard drives. The Hi-Speed USB interface provides for easy installation with its Plug and Play design. The adapter supports all existing IDE/ATAPI devices such as CD-ROM, CD-RW, DVD-ROM, IDE hard drives and SATA hard drives. This adapter is unique in that one cable has a standard 40-pin IDE connector on one side and a connector on one side for 3.5" and 5.25" drives, and has a 44-pin connector on the other side for 2.5" laptop/notebook drives. It also has a SATA connector for connecting SATA hard drives. Your drive will map in as the next available drive letter on your system automatically and can be accessed like like any other drive on your system.

One-Touch Backup

The K-100 offers a one-touch backup solution. Simply load the included software onto your computer, select what files you'd like backed up in the included software, and you're ready to go. Just press the button and the K-100 will automatically back up your selected files. Now you can easily back up your important files at the touch of a button!

NOTE: Some hard drives (especially the Hitachi hard drives) have a female IDE connector on them instead of a male IDE connector. This adapter is only compatible with hard drives which use a male IDE connector.

• Compatible with 2.5", 3.5", 5.25" and SATA devices
• Supports IDE & Enhanced IDE 3.5" internal IDE Hard Disk
• Supports ATA/ATAPI-6 Specification 1.0
• Supports SATA I and SATA II
• USB 2.0 up to 480Mbps Transfer Speed
• Backward Compatible with USB 1.1
• Plug and Play
• Hot Swappable

• USB to IDE / SATA Cable
• Connect any device with an IDE or SATA Interface to a PC with USB interface
• Transfer rate Approx. 480 MBps
• Complies with USB 2.0 standards
• Backwards compatible to USB 1.1 standards
• Complies with ATA/ATAPI-66 Spe. V1.0
• Compatible with SATA-I and SATA-II
• Supports IDE and enhanced IDE hard drives
• Supports ATA/ATAPI CD-ROM/R/RW DVD-ROM and more
• External AC adapter drive power.

• Microsoft Windows 98/98SE/ME/2000/2003/XP/Vista/7 & MAC OS 8.6 and later

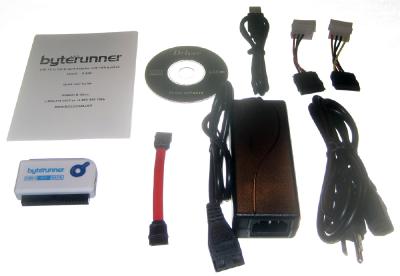

• USB to IDE / SATA adapter cable
• Power adapter (120V, 60 Hz) and cord.. provides power for standard IDE & SATA drives.
• SATA data cable
• Instruction Booklet
• Driver CD
