Item code: AN2420

USB 2.0 Video Adapter

  • INTRODUCTION:

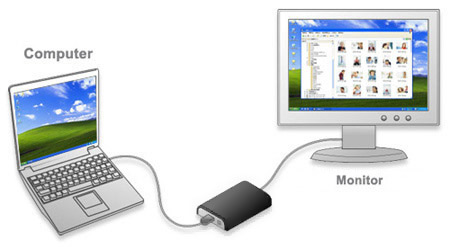

    • This USB Display Adapter enables you to connect one more monitor, LCD or projector to a computer with a USB 2.0 port. For desktop users adding an extra monitor via USB connection is easier than ever without having to open the computer chassis to install an internal video card. Once the installation is done, the USB-attached monitor soon wakes up. No function key hassle to swap a second monitor.

    With this handy adapter, you can enjoy many benefits brought by an add-on monitor. The most obvious one is that you get more desktop area to have more applications visible at one time. For example, you may work on one monitor while your family watch video on the other. No more stacking windows within the confines of a single display. Or you may span an application, e.g. spreadsheets, across two displays. What's more, the adapter is hot pluggable. If you are not using the extra monitor, just unplug the adapter at any time; no reboot needed.

  • Application:

    • Office Workstation

  • View your large spreadsheets across two screens with display continuity.

  • Multitask more effectively without overlapping windows.

  • Edit on one screen while surfing the Internet information on the other.

    • On the road

  • Do multiple screen presentations without bringing another computer.

  • Easily provide multiple screen exhibitions in a trade show.

    • Editing workstation

  • Use second display for palettes/tools.

  • Get a panoramic view of large documents.

    • Editing workstation

  • Type documents on one screen while viewing reference material on the other.

  • Compare two documents simultaneously across two screens.

    • Financial analysis

  • Have one monitor per data stream.

  • View charts and live data at the same time.

    • Entertainment

  • View videos/TV on one screen and reviews on the other.

  • Get additional perspectives when playing games.

    • Features

  • Add-on monitor, LCD or projector through a single USB 2.0 port.

  • Supports up to 2 USB display adapters to work simultaneously.

  • Plug & Play

  • Hot-plug; add or remove monitor without system reboot.

  • Windows Vista compatible.

  • Resumes from hibernation and suspend modes.

    • System Requirements

    The minimum requirements for the PC are:

  • System must have a CPU at 1.2GHz or higher processor clock. Intel Pentium/Celeron family, or AMD K6/Athlon/Duron family, or compatible processor.

  • Minimum 256 MB of RAM

  • At least one USB2.0 port.

  • 30Mb of available disk space.

  • Windows®2000 SP4, XP SP2 32-bit, Vista™ 32-bit

  • Super VGA (800 x 600) or higher resolution monitor

    • To display DVD on the adapter-attached monitor, in addition to the requirements above, the following requirements should also be met:

  • With dual core CPU at 2.0 GHz processor clock

  • The adapter screen resolution be set to 800x600 with 16bit color

Specifications

Host Interface

USB 2.0

Video Interface

DVI-I

Connectors

Video output: DVI-I 24pin + 5pin Female Connector
Host upstream link: USB Mini-B Type Female Connector

Connectivity

Up to 2 adapters on a computer

RAM

8M x 16 DDR Synchronous DRAM (SDRAM)

Power Mode

Bus-powered

Operation System Support

Windows 2000 SP4, XP SP2 and Vista 32-bit

Supported Modes

Extended Desktop (Default), Mirrored Desktop, Primary Display

Supported Resolutions

 640x480, 800x600, 1024x768,
1280x960, 1280x1024, 1360x768,
1366x768, 1368x768, 1400x1050,
Housing Plastic
Dimensions 84.3 (L) x 54 (W) x17.8 (H) mm
USB Cable
  • Separated from the body
  • Type: USB A -Type Male to
    5pin Mini USB B-Type Male
  • Color: Black
  • Length: 1M

Operating temperature

10-40°C

Storage temperature

-10~80°C

Relative Humidity

< 85% non-condensing

EMC

FCC Part 15 Class B, IC ICES-003
CE (EN55022, EN61000, EN55024)

RoHS

RoHS compliant

* Specifications are subject to change without notice.

Package Contents

  • USB Display Adapter x1

  • Driver CD x1

  • USB Cable x1

  • Quick Installation Guide x1

  • DVI-A male to VGA female Adapter x1

    • Documents:

    Manual (PDF)
    Product Brochure (PDF)



    Quantity Desired:


    In Stock!

    All in-stock orders received by 2 pm Eastern time ship the same day. (Monday-Friday excluding holidays)

    Quantity Discounts
    QuantityPrice
    1+$59.95
    3+$57.00
    10+$56.00
    50+$55.00
    100+$54.00
